Tuesday, August 12, 2025

UC3842 Working Principles

let’s break this down step-by-step so it’s easy to follow.



We’ll go over UC3842’s working principle, how protection mode works, why the main FET blows, and how to fix/cure the problem.





๐Ÿ”Œ 1. UC3842 Working Principle



The UC3842 is a PWM (Pulse Width Modulation) current-mode controller IC used in SMPS power supplies — common in LCD/LED TVs, adapters, and other electronics.
Its main jobs are:

  • Generate PWM signals to drive the main MOSFET/FET.

  • Monitor voltage & current to keep the output stable.

  • Provide protection against overcurrent and under-voltage.

Key Pins & Roles


Pin Name Function
1 COMP Error amplifier output — adjusts duty cycle.
2 VFB Voltage feedback from output via optocoupler.
3 ISENSE Current sense from shunt resistor — protects MOSFET.
4 RT/CT Timing capacitor & resistor — sets switching frequency.
5 GND Ground reference.
6 OUTPUT Drives MOSFET gate.
7 VCC Power supply for UC3842 (~15V start-up).
8 VREF Reference voltage (5V) for internal circuits.


How it works in normal mode:

  1. Start-up phase – VCC is charged from high-value resistor from mains until ~16V, UC3842 starts switching.

  2. PWM generation – UC3842 sends pulses to MOSFET gate to transfer energy through transformer.

  3. Feedback control – Output voltage is sensed via optocoupler → adjusts duty cycle.

  4. Stable operation – Keeps voltage steady under varying loads.


⚠️ 2. How It Goes into Protection Mode

Protection mode triggers mainly through Pin 3 (ISENSE) or low VCC:

  • Overcurrent Protection (OCP) – If the current sense voltage exceeds ~1V, UC3842 shuts off the MOSFET for that cycle.

  • Under-voltage Lockout (UVLO) – If VCC falls below ~10V, IC stops switching.

  • Feedback failure – If optocoupler feedback is missing, output rises → OVP can trigger.

In many SMPS designs, protection mode means:

  • IC stops sending PWM pulses.

  • Power LED may blink (in TVs).

  • Supply keeps trying to restart ("hiccup mode").


๐Ÿ’ฅ 3. Why the Main FET Blows

The main switching MOSFET (or FET transistor) blows when:

  1. No feedback / optocoupler fault → output rises uncontrollably → FET overstressed.

  2. Short on secondary side → primary current spikes → FET overheats.

  3. Snubber network failure (damaged resistor, diode, or capacitor) → high voltage spikes destroy FET.

  4. Dry or leaky primary capacitor → unstable switching → MOSFET avalanche breakdown.

  5. Gate drive issues → UC3842 output weak → MOSFET runs in linear region → heat buildup.


๐Ÿ›  4. How to Cure & Prevent This Problem

Step-by-step repair checklist

  1. Replace blown MOSFET — use same or higher-rated part.

  2. Check UC3842 — often damaged when FET shorts.

  3. Test snubber network (across primary winding or FET drain-source) — replace burnt resistors/diodes/caps.

  4. Check startup resistor — if open, IC may not start correctly.

  5. Replace dried electrolytic capacitors — especially primary filter & VCC capacitor (47ยตF–100ยตF, 50V).

  6. Check optocoupler & TL431 — ensure proper feedback.

  7. Test load — shorted diodes or load on secondary can cause immediate FET failure.

  8. Power up with series bulb tester — to avoid instant re-damage during testing.

Preventive design tips

  • Use proper snubber circuit to absorb voltage spikes.

  • Ensure adequate gate drive from UC3842.

  • Keep good quality capacitors in primary side.

  • Check transformer insulation — no shorts between windings.



Monday, August 11, 2025

SONY LCD LED TV Emmc files Copy

Sony LCD/LED TV eMMC Recovery Guide that’s technician-friendly, covers both Android and non-Android Sony TVs, and shows how to safely repair without losing keys.


๐Ÿ›  Sony TV eMMC Recovery & Repair Guide


1️⃣ Understanding Sony eMMC in TVs

Sony LCD/LED TVs store their operating system and unique security data inside an eMMC chip (embedded MultiMediaCard).
The data is divided into partitions:

Partition Purpose Notes
BOOT1 / BOOT2 Bootloader, minimal firmware Needed for CPU to start reading OS
User Area (USER) Main OS, apps, Android system Can be replaced from donor dump
TA / DRV / SECURE Security keys, panel config, DRM Must be kept from original board to avoid losing functions
MISC Calibration, region settings Match to panel

2️⃣ Why Simple eMMC Swap Fails

  • Board-locked keys: BOOT partitions have encryption tied to the CPU.

  • Different panel configs: Wrong LVDS/eDP mapping causes no picture.

  • Security partitions missing → loss of Netflix, YouTube, or OS boot failure.


3️⃣ Recovery Methods

Method A — Safe Clone (Preferred)

When: Original eMMC is healthy enough to read.

Tools: RT809H, EasyJTAG, UFI, or similar.

Steps:

  1. Backup Original Chip

    • Connect to original faulty board’s eMMC via ISP pinout.

    • Read FULL dump (BOOT1, BOOT2, USER, EXT_CSD).

    • Save in at least 2 locations.

  2. Read Donor Dump

    • Get a full dump from a working identical board.

  3. Merge Files

    • Keep SECURE/DRM/TA partitions from the original.

    • Replace SYSTEM/APP partitions from donor.

  4. Write Back

    • Program merged dump into original chip or a new eMMC.


Method B — Direct Donor Write (Keys Lost)

When: Keys not important (TV used offline or without DRM).

  1. Program donor’s full dump to new eMMC.

  2. Install on faulty board.

  3. Boot and check — Netflix/DRM will not work unless keys restored.


Method C — New Blank eMMC + USB Recovery

When: No dumps available but firmware is online.

  1. Fit same-size eMMC (Samsung, Hynix, Kingston).

  2. Program minimal BOOT1/BOOT2 (from service files).

  3. Enter USB Recovery Mode to install full firmware.

Sony USB Recovery Key Combos:

  • Android Models:

    • TV OFF → Hold Vol– & Power on TV → Plug in power → Hold until LED blinks amber/white.

  • Linux Models:

    • TV OFF → Hold OK button on remote → Power on → Wait for firmware load.


4️⃣ eMMC Pinout (Sony Android TV Example)

Most Sony Android TVs use BGA153 or BGA169 packages.
Typical ISP points:

CMD  → Test pad near CPU (label "CMD" or "C")
CLK  → Test pad near CPU (label "CLK" or "CK")
DAT0 → Test pad near CPU (label "D0")
VCC  → 3.3V rail
VCCQ → 1.8V rail
GND  → Ground pad

⚠ Always confirm with board schematic or multimeter before soldering.


5️⃣ Partition Map (Sony Android TV Example)

BOOT1        4MB
BOOT2        4MB
RPMB         4MB
system_a     ~1.2GB
system_b     ~1.2GB
userdata     varies
vendor       300–500MB
ta           2–8MB
misc         1MB

๐Ÿ’ก Keep ta from original board at all costs.


6️⃣ Health Testing Before Programming

Using programmer software:

  • Read EXT_CSD — Check life time estimation values.

    • 0x0A = New, 0x0B–0x0C = Medium wear, 0x0D+ = End of life.

  • If many bad blocks in boot area → replace eMMC.


7️⃣ After Repair

  • Run TV → Do factory reset via service menu.

  • If panel config is wrong → set correct panel type in Service Menu:

    • Enter service mode: Display + 5 + Vol+ + Power on remote.


8️⃣ Common Problems After eMMC Work

Symptom Likely Cause Fix
TV boots but no picture Wrong panel config Set correct panel in service menu
TV boots to logo loop Corrupt system partition Reflash USER area
Netflix/YouTube error Lost DRM keys Restore TA/SECURE partition
TV doesn’t turn on at all Missing BOOT1/BOOT2 or dead CPU Reprogram bootloader / check SoC

9️⃣ Example Workflow (Technician Short Version)

  1. Read original chip fully (save dump).

  2. Test eMMC health — replace if bad.

  3. Get donor dump for exact model.

  4. Merge donor system + original security partitions.

  5. Write merged dump to chip.

  6. Reinstall chip & test.

  7. Final firmware update via USB for stability.



SONY LCD LED TV EMMC PROBLEM

 If you swapped the eMMC from a working Sony LCD TV board to a non-working board and now the eMMC doesn’t work anymore, that means there’s more going on than just “memory chip bad or good.”

Here’s what’s likely happening and how to fix it:


1️⃣ Why eMMC Swap Fails Between Boards

Sony mainboards (and most smart TVs) store not only firmware but also:

  • Security keys (HDCP keys, DRM licenses, Netflix keys, Google Widevine keys for Android TVs)

  • Board-specific calibration data (panel type, LVDS mapping, white balance, backlight curve)

  • Bootloader tied to CPU/SOC ID
    → Many Sony boards “lock” firmware to the original SoC, so swapping eMMC to a different board can cause a boot block mismatch and brick it.


2️⃣ Common Results After a Bad Swap

  • TV stuck on logo or no boot at all.

  • TV power LED blinking error codes.

  • eMMC unreadable or “protected” in programmer.

  • TV shows distorted image (wrong panel data).


3️⃣ Correct Method to Repair

Instead of directly swapping the eMMC, you need to clone its contents to the faulty board’s chip or program it with a compatible dump.

Method A — Chip Clone

  1. Read the working eMMC fully with an ISP programmer (RT809H, EasyJTAG, UPA, etc.).

  2. Save the dump.

  3. Write that dump to the faulty board’s original eMMC.

  4. Keep the faulty board’s original chip — it contains matching serial keys.


Method B — Merge Boot + User Data

Sometimes only the system partitions are needed from the working board.

  1. Read the BOOT1, BOOT2, USERDATA partitions from the working board.

  2. Merge them with the faulty board’s secure area dump.

  3. Write merged dump back to faulty board’s eMMC.


Method C — New Blank eMMC + Fresh Software

  1. Install a new, same-size eMMC chip.

  2. Program it with a full dump (boot + user area) for your exact Sony model and mainboard.

  3. If dump not available → use Sony’s USB recovery mode after programming minimal boot sectors.


4️⃣ Testing the eMMC

Before blaming the chip:

  • Test eMMC with eMMC tester or programmer’s “Check Health” function.

  • Check life cycle count — if it’s near end-of-life, it’s safer to replace.

  • Look for bad blocks — if many are in critical boot areas, chip is unreliable.


5️⃣ Power & Signal Checks

Before and after chip work:

  • Ensure eMMC has stable power (1.8V and 3.3V rails).

  • Check CLK, CMD, DAT lines for activity with oscilloscope on power-up.

  • If no activity, CPU/SOC could be faulty — not the eMMC.


๐Ÿ’ก Pro Tip for Sony Android TVs
If you have the original faulty board’s eMMC dump, you can flash only the system image from a good dump but keep the DRM/secure partitions from the original — this keeps Netflix, YouTube, and Android services working.



Fault Repair Professional Secrets Book




Top 10 Common LED TV Problems and How to Fix Them at Home

๐Ÿ“บ Top 10 Common LED TV Problems and How to Fix Them at Home

By Imran Ashraf – Electronics Repair Guide

LED TVs are an essential part of every home, but like all electronics, they can develop faults over time. If your LED TV is giving trouble, don’t worry — many problems can be fixed at home with some basic tools and knowledge. Here are the 10 most common LED TV problems, their causes, and easy fixes.


1️⃣ TV Turns On but No Picture

TV no picture

Cause: Faulty backlight, damaged T-CON board, or loose LVDS cable.
Fix: Shine a flashlight on the screen — if you see a faint image, the backlight is faulty. Check LVDS cables. Replace LED strips or T-CON board if needed.

2️⃣ No Sound but Picture is OK

TV no sound

Cause: Audio IC failure, damaged speakers, or settings issue.
Fix: Check sound settings, test with headphones, replace speakers if necessary.

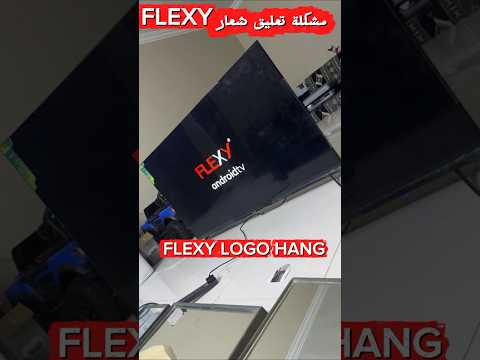

3️⃣ TV Stuck on Logo / Boot Loop

TV boot loop

Cause: Corrupt firmware or faulty main board.
Fix: Update firmware via USB. If it fails, replace or repair the main board.

4️⃣ Remote Control Not Working

Remote not working

Cause: Dead batteries, dirty IR sensor, or faulty remote.
Fix: Replace batteries, clean IR sensor, test remote using mobile camera.

5️⃣ Vertical or Horizontal Lines on Screen

Lines on screen

Cause: T-CON board failure or panel issue.
Fix: Reseat ribbon cables. Replace T-CON board if needed.

6️⃣ Colors Look Distorted

Distorted colors on TV

Cause: Faulty T-CON, gamma IC, or wrong picture settings.
Fix: Reset picture settings. Replace gamma IC if required.

7️⃣ TV Not Turning On (No Power)

TV not turning on

Cause: Faulty power board or blown fuse.
Fix: Check fuses with a multimeter. Replace power board if needed.

8️⃣ Backlight Flickering

Backlight flickering

Cause: LED strips or power supply problem.
Fix: Replace LED strips. Check voltage output to backlight.

9️⃣ TV Turns Off by Itself

TV turns off by itself

Cause: Overheating, faulty power supply, or software glitch.
Fix: Clean ventilation holes, update firmware, replace capacitors if needed.

๐Ÿ”Ÿ HDMI Ports Not Working

HDMI port issue

Cause: HDMI IC failure or damaged port.
Fix: Try different HDMI cables. Replace HDMI IC if necessary.


๐Ÿ›  Tools Needed for Bas

IF you want a complete LCD/LED TV screen voltage diagnosis guide that explains:

  • What each voltage is called

  • What its normal range is

  • Where to measure it

  • How to know which one is missing

  • How to fix it

Here’s the full technician-level explanation.


๐Ÿ“บ LCD/LED TV Screen Voltage Diagnosis & Repair Guide


1️⃣ Understanding Screen Power System

The screen (panel) in an LCD/LED TV needs multiple voltages to operate, generated mostly on the T-CON board (or integrated into the main board in some TVs).

Typical main voltages:

Voltage Name Symbol Typical Range Function
Panel VCC VCC / VDD 3.3V – 12V (model-dependent) Main power for logic circuits
VGH Gate High +22V – +32V Turns ON TFT pixels (row selection)
VGL Gate Low –5V to –12V Turns OFF TFT pixels
AVDD Analog VDD 12V – 16V Powers column drivers
VCOM Common Voltage ~4V – 7V Pixel reference voltage
Gamma Voltages V1–V14 Stepped levels Control grayscale accuracy
VREF Reference Voltage ~1.2V – 3.3V For ADC/DAC circuits in panel
LED Backlight Voltage LED+ / LED– 20V – 200V (depends on strips) Powers LED strips

2️⃣ Where to Measure Voltages

  • Main Panel Supply (VCC) → At T-CON input fuse (label F1/F100).

  • VGH, VGL, AVDD, VCOM → Near T-CON power IC (often marked VGH, VGL, VCOM on PCB).

  • Gamma Voltages → On Gamma IC pins (AS15, GM8284, etc.).

  • LED Voltage → On LED driver output (often part of power board).


3️⃣ Step-by-Step Voltage Testing

Step 1 — Check Panel VCC

  • Location: T-CON fuse input.

  • Normal: 3.3V / 5V / 12V depending on panel type.

  • If missing:

    • Check main board MOSFET switch circuit.

    • Replace blown fuse.

    • Trace supply from main board regulator.


Step 2 — Check AVDD

  • Location: Output pin of T-CON DC-DC boost converter.

  • Normal: 12–16V.

  • If missing:

    • Check T-CON boost IC (MP2363, RT8293, etc.).

    • Test inductor & diode for shorts.

    • Replace faulty IC.


Step 3 — Check VGH

  • Location: Marked pad on T-CON, or on ribbon to panel.

  • Normal: +22V – +32V.

  • If missing:

    • DC-DC boost for VGH faulty.

    • Check for short on gate driver IC in panel.

    • Replace boost IC or repair short.


Step 4 — Check VGL

  • Location: Near same area as VGH.

  • Normal: –5V to –12V.

  • If missing:

    • Negative voltage generator faulty.

    • Check boost capacitor/diode.

    • If shorted to ground, gate driver IC inside panel is bad.


Step 5 — Check VCOM

  • Location: VCOM test point on T-CON or panel ribbon.

  • Normal: Around ½ of AVDD (~5–7V).

  • If unstable/missing:

    • Adjust in service menu or via T-CON potentiometer.

    • Bad op-amp in T-CON may cause lines/flicker.


Step 6 — Check Gamma Voltages

  • Location: Pins of Gamma IC (AS15, etc.).

  • Normal: Gradual step-down voltages (V1 highest, V14 lowest).

  • If one step jumps abnormally:

    • Gamma IC faulty → replace.


Step 7 — Check LED Backlight Voltage

  • Location: LED driver output on power board.

  • Normal: Depends on number of LED strips (e.g., 80V for 4 strips, 180V for 10 strips).

  • If missing:

    • Driver IC or MOSFET faulty.

    • Open LED strip → backlight won’t start.


4️⃣ Common Fault Symptoms & Missing Voltage Clues

Symptom Likely Missing Voltage
TV on, backlight works, but no display AVDD / VGH / VGL
White screen Missing VGL or VCOM
Faint picture, needs torch to see LED backlight voltage
Colored vertical lines One Gamma voltage abnormal
Logo freeze Panel VCC drops during boot

5️⃣ Quick Reference Voltage Table

Voltage Range If Missing → Check
VCC 3.3–12V Fuse, MOSFET, regulator
AVDD 12–16V Boost converter, diode, inductor
VGH 22–32V Boost IC, gate driver short
VGL –5 to –12V Negative pump, short to GND
VCOM ~5–7V Op-amp, adjustment
Gamma Steps from AVDD to 0V Gamma IC
LED+ 20–200V Driver IC, LED strips

6️⃣ Repair Tips

  • Always measure with TV powered ON and T-CON connected.

  • Use digital multimeter in DC mode.

  • If a voltage is present but drops after 1–2 seconds → load fault (short).

  • Isolate panel by disconnecting one ribbon at a time to see if voltages stabilize (panel half short).


If you want color-coded voltage diagram for LCD TV T-CON boards showing exactly where to put your probes and what voltages to expect — that makes real repairs much faster you need to buy my Printed Book Online it's a complete repairing course for your repair shop.

Order Now Book BY IMRAN ASHRAF



Top 10 Common LED TV Problems and How to Fix Them at Home




๐Ÿ“บ Top 10 Common LED TV Problems and How to Fix Them at Home



By Imran Ashraf – Electronics Repair Guide

LED TVs have become a must-have in every home, but like all electronics, they can develop faults over time. If your LED TV is acting up, don’t panic — many problems can be fixed at home with some basic tools and a little knowledge. In this article, we’ll go through the 10 most common LED TV problems, their causes, and simple solutions.


1️⃣ TV Turns On but No Picture

Cause: Faulty backlight, damaged T-CON board, or loose LVDS cable.
Fix:

  • Shine a flashlight on the screen — if you see a faint image, the backlight is faulty.

  • Check and reseat LVDS cables.

  • Replace LED strips or T-CON board if needed.


2️⃣ No Sound but Picture is OK

Cause: Audio IC failure, speaker damage, or settings issue.
Fix:

  • Go to the sound menu and ensure audio output is set correctly.

  • Try headphones to test audio IC.

  • Replace speakers if damaged.


3️⃣ TV Stuck on Logo / Boot Loop

Cause: Corrupt firmware or main board fault.
Fix:

  • Try a USB firmware update from the manufacturer’s site.

  • If update fails, replace or repair the main board.


4️⃣ Remote Control Not Working

Cause: Dead batteries, dirty IR sensor, or faulty remote.
Fix:

  • Replace batteries.

  • Clean the IR sensor on the TV.

  • Test remote with a mobile camera (look for infrared light when pressing buttons).


5️⃣ Vertical or Horizontal Lines on Screen

Cause: T-CON board failure or panel issue.
Fix:

  • Check and reseat ribbon cables.

  • Replace the T-CON board if lines remain if still not fix than you need to contact Professional Repair Shop

  • Most Common cause is Cof is faulty you need to Cof Bonding for your Screen.


6️⃣ Colors Look Distorted

Cause: Faulty T-CON, gamma IC, or wrong picture settings.
Fix:

  • Reset picture settings.

  • Replace the gamma IC if repair skills allow.


7️⃣ TV Not Turning On (No Power)

Cause: Faulty power board or blown fuse.
Fix:

  • Open back cover and check fuses with a multimeter.

  • Replace power board if necessary.


8️⃣ Backlight Flickering

Cause: LED strips or power supply issue.
Fix:

  • Replace LED strips.

  • Check voltage from power board to backlight.


9️⃣ TV Turns Off by Itself

Cause: Overheating, power supply fault, or software glitch.
Fix:

  • Clean dust from ventilation holes.

  • Update firmware.

  • Replace faulty capacitors on the power board.


๐Ÿ”Ÿ HDMI Ports Not Working

Cause: HDMI IC failure or damaged port.
Fix:

  • Try different HDMI cables.

  • Replace HDMI IC if needed.


๐Ÿ›  Tools You’ll Need for Basic LED TV Repairs

  • Multimeter

  • Screwdriver set

  • Soldering iron & solder wire

  • Flashlight

  • ESD protection (wrist strap)


Safety Tips Before You Start

  • Always unplug the TV before opening.

  • Use insulated tools.

  • If you’re unsure, consult a professional repair technician.


Final Tip: Regular cleaning, stable power supply, and proper ventilation can prevent most LED TV issues.

๐Ÿ’ฌ Have a TV problem that’s not listed here? Comment below, and I’ll help you with the solution.



PMIC Circuit

 Deep Knowledge About PMIC Circuits Used in LCD TV Panels By Imran Ashraf


Power Management Integrated Circuits (PMICs) are critical components in **LCD TV panels**, responsible for efficiently managing and distributing power to various subsystems such as the **T-Con board (Timing Controller), backlight LEDs, source/gate drivers, and audio/video processing chips**. Below is a detailed breakdown of their functions, architecture, and key considerations.


1. Role of PMIC in LCD TVs

PMICs in LCD TVs perform several essential functions:

Voltage Regulation: Converts input power (e.g., 12V/24V from SMPS) to required voltages (1.8V, 3.3V, 5V, ±15V, etc.).

Power Sequencing: Ensures correct startup/shutdown order to prevent latch-up or damage.

Backlight Driver Control: Manages LED backlight current (constant current drivers for mini-LED/OLED).

Efficiency Optimization  :Uses **buck, boost, and LDO regulators** to minimize power loss.

Protection Circuits: Overvoltage (OVP), overcurrent (OCP), and thermal shutdown (TSD).

2. Key PMIC Sub-Blocks in LCD TVs

A. DC-DC Converters (Buck/Boost)

Buck Converters  Step down voltage (e.g., 12V → 5V for T-Con).

-Boost Converters: Step up voltage (e.g., 12V → 24V for gate drivers).

- Synchronous vs. Non-Synchronous: Synchronous designs improve efficiency (>90%).

B. LED Backlight Drivers

Constant Current Drivers : For LED strings (PWM dimming control).

- Mini-LED Local Dimming  Requires multiple channels (up to 1000+ zones in high-end TVs).

- **OLED TV PMICs**: Use **high-voltage boost converters** (up to 60V for OLED panel bias).


### **C. LDOs (Low-Dropout Regulators)**

- Used for noise-sensitive circuits (e.g., T-Con logic, audio ICs).

- **Low noise & high PSRR** (Power Supply Rejection Ratio) for stable video signals.


### **D. Power Sequencing Controller**

- Ensures proper startup sequence (e.g., **T-Con before source drivers**).

- Prevents inrush current and voltage spikes.


### **E. Protection & Monitoring**

- **OVP/OCP/UVLO (Under-Voltage Lockout)**.

- **I²C/SPI Interface** for digital control and fault reporting.


---


## **3. Advanced PMIC Features in Modern LCD TVs**

### **A. Dynamic Voltage Scaling (DVS)**

- Adjusts voltage based on load (saves power in dark scenes).

- Used in **high-refresh-rate (120Hz/144Hz) panels**.


### **B. Digital Power Management (Digital PMICs)**

- **Programmable via I²C/SPI** (e.g., adjusting backlight dimming curves).

- Supports firmware updates for adaptive power control.


### **C. Integration with T-Con & Source Drivers**

- Some PMICs integrate **gamma voltage buffers** for precise panel control.

- **eDP (Embedded DisplayPort) PMICs** manage power for high-resolution displays.


### **D. Thermal Management**

- **Smart heat dissipation** via load balancing.

- **Junction temp monitoring** to prevent overheating.


---


## **4. Common PMIC ICs Used in LCD TVs**

| **Manufacturer** | **PMIC Model** | **Key Features** |

|-----------------|--------------|-----------------|

| **Texas Instruments** | TPS651xx | Dual-output (+15V/-15V) for T-Con |

| **Maxim Integrated** | MAX171xx | High-efficiency LED drivers |

| **ON Semiconductor** | FAN534x | Boost converter for OLED bias |

| **Richtek** | RT693x | Multi-channel backlight driver |

| **Dialog Semiconductor** | DA921x | Digital multi-phase buck converter |


---


## **5. Design Challenges & Solutions**

### **A. EMI Issues**

- **Spread-spectrum clocking (SSC)** in DC-DC converters to reduce noise.

- **Shielding & proper PCB layout** (minimize high-frequency loops).


### **B. Power Efficiency**

- **Synchronous rectification** vs. diode-based designs.

- **Light-load efficiency modes** (PWM/PFM switching).


### **C. Mini-LED & Local Dimming Complexity**

- Requires **multi-channel PMICs** with precise current matching.

- **Hybrid dimming (PWM + analog)** for smooth brightness transitions.


### **D. Heat Dissipation**

- **Thermal vias & heatsinks** for high-current paths.

- **Dynamic power throttling** in high-temperature conditions.


---


## **6. Future Trends in TV PMICs**

- **GaN (Gallium Nitride) PMICs** for higher efficiency and compact designs.

- **AI-based power optimization** (adjusts voltages based on content).

- **Fully integrated PMIC + T-Con SoCs** for slimmer designs.


---


Conclusion

PMICs in LCD TVs are evolving with **higher integration, digital control, and advanced backlight management**. Understanding their architecture helps in troubleshooting power-related display issues (e.g., flickering, no backlight) and optimizing TV power consumption.




Sunday, August 10, 2025

Calculate All Types SMD Resistor Values

LCD LED TV Repair Tools Including in this Collection PDF, APK Files  SMD Resistor Code Calculator

SMD Resistor Value Calculator


Download here free of cost

Resistor Calculator APK
SMD Resistor Calculator
All LED TV LOGO
5 pin I.C Circuit
Sony Repair Tips
LCD Repair
COZY Magnifier APK
LVDS Pinout data
CCFL Protection
NAND FLASH
NOR FLASH



Get Wealth Planner — Fast, Realistic Paths

Fast Wealth Planner — Realistic, Ethical Paths

Enter goals and current finances. The tool estimates what it takes to reach wealth faster, shows realistic options, and creates a prioritized action checklist.

Checklist: Weekly Actions (follow these to accelerate)

  • Track every rupee — record 7 days of spending
  • Save first: automate at least 20% of income (raise over time)
  • Sell unused items — convert to cash this week
  • Pick one high-ROI skill (sales, coding, digital marketing) — 30 mins/day
  • Launch a simple side gig within 14 days
  • Invest surplus into a diversified instrument consistently
  • Reinvest first profits from side hustle into growth

Warnings & Smart-Risk Guidance

No get-rich-quick shortcuts: avoid gambling, high-fee "guaranteed riches", or illegal schemes. High returns usually mean high risk. This tool shows realistic targets and the tradeoffs.
Smart fast routes: skill-leveraged earnings (freelance/consulting), scalable small busines

UC3842 Working Principles

let’s break this down step-by-step so it’s easy to follow. We’ll go over UC3842’s working principle , how protection mode works , why the m...
